"Programmer Electronic Control"

PartNo. 51-019-02, NSN 1680-99-652-3410,
Supplier KO656, Marconi Avionics, UK

- Chips used and date code statistics by Erik Baigar, 8.6.2008, www.baigar.de -

The unit contains 497 chips, mainly of the military TTL 54xx series. Statistics of
the date codes printed on the chips of the 15 processor PCBs of unit number 129 looks
like this:

Conclusion: Unit manufactured in or after 1983!

The following gives a survey on the different chips used in the PEC. Since 6/17/2008 all chips used in the
whole unit are identified! The first four are custom chips made by CMC in Canada (MFR90073). But since they
where only made a very short period of time, CMC was not able to supply any information. Instead comments
from people on the WEB and measurements on the chips revealed their purpose/contents:

[214017_MFR90073.jpg]
56899 bytes
383 x 469
 [214018_MFR90073.jpg]
60623 bytes
413 x 427
 [214020_MFR90073.jpg]
80457 bytes
475 x 529
 [339-446_MFR90073_67PS00205.jpg]
67850 bytes
312 x 784
 [339-446_MFR90073_67PSC0205.jpg]
41959 bytes
271 x 425
MFR90073
Part No. 214-017
Week 12/1981		 MFR90073
Part No. 214-018
Week 44/1981		 MFR90073
Part No. 214-020
Week 19/1982		 MFR90073
Part No. 339-446
67 PS 00205
Week 15/1981		 MFR90073
Part No. 339-446
67 PS 00205
Week 15/1981
[214-017_12ResistorArray.gif] [214-018_8ResistorArray.gif] [214-020_5InputProtector.gif] [339-449_3CouplingNetworks.gif] [339-449_3CouplingNetworks.gif]

The following chips are more or less standard TTL parts, where the unit exclusively
makes use of the MIL-SPEC versions of them (i.e. the 54xxx variant):
[5400_4NAND2Input.gif]
10557 bytes
799 x 317
 [5402_4NOR2Input.gif]
13049 bytes
779 x 370
 [5403_4NAND2InputOC.gif]
16646 bytes
490 x 369
 [5404_6Inverter.gif]
6303 bytes
407 x 299
 [5408_4AND2Input.gif]
11816 bytes
789 x 318
[5410_3NAND3Input.gif]
6385 bytes
649 x 222
 [5411_3AND3Input.gif]
7878 bytes
671 x 337
 [54121_MonoFlop.gif]
9480 bytes
443 x 489
 [5412_3NAND3Input.gif]
6066 bytes
293 x 321
 [54148_9813_8BitPriorityEncoder.gif]
12223 bytes
449 x 428
[54153_2Mal4To1MUX.gif]
29563 bytes
826 x 486
 [54155_2Mal1To4MUX.gif]
18522 bytes
664 x 436
 [54157_QuadMux2To1.gif]
20785 bytes
641 x 624
 [5415_3AND3InputOC.gif]
16206 bytes
507 x 391

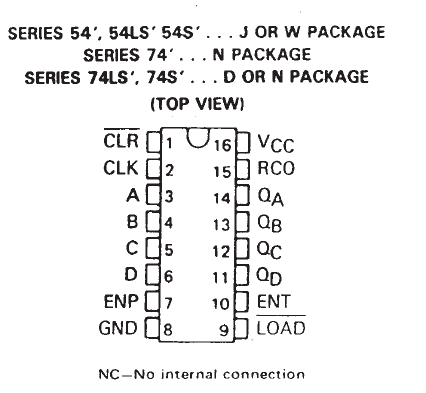

 [54161_4BitCounterResettable.gif]
9898 bytes
426 x 393
[54164_8BitSerInParOutShiftReg.gif]
14197 bytes
550 x 447
 [54165_8BitSerParInSerOutShiftReg.gif]
10463 bytes
397 x 352
 [54174_6DFlipFlop.gif]
16124 bytes
629 x 435
 [54175_4DFlipFlop.gif]
9422 bytes
537 x 294
 [54183_DualCarrySlaveAdder.gif]
10576 bytes
501 x 453
[5420_2NAND4Input.gif]
7761 bytes
662 x 316
 [5427_3NOR3Input.gif]
10079 bytes
484 x 409
 [5430_NAND8Input.gif]
35611 bytes
470 x 676
 [5432_4OR2Input.gif]
9255 bytes
740 x 280
 [5437_4NANDbuffer2Input.gif]
11478 bytes
525 x 430
[5438_4NANDbufferOC2Input.gif]
8865 bytes
479 x 340
 [5442_BCDtoDecimalDecoder.gif]
24889 bytes
629 x 716
 [5474_2JKFlipFlip.gif]
14314 bytes
402 x 590
 [5475_QuadLatch.gif]
20941 bytes
665 x 426
 [5483_4BitFullAdder.gif]
19969 bytes
595 x 419
[5485_MagnitudeComparator.gif]
7105 bytes
489 x 311
 [5490_DecadeCounter.gif]
9011 bytes
447 x 327
 [5492_DivideBy12Counter.gif]
8742 bytes
423 x 325
 [5493_BinaryCounter.gif]
8747 bytes
423 x 338
 [5495_4BitBiDirParallelShiftReg.gif]
15846 bytes
560 x 457
[55107_DualLineReceivers.gif]
8411 bytes
425 x 288
 [55182_DualDiffReceiver.gif]
8584 bytes
298 x 287
 [55183_DualDiffDriver.gif]
8457 bytes
302 x 300
 [55234_SenseAmplifier.gif]
28960 bytes
585 x 893
 [55325_CoreMemoryDriver.gif]
26017 bytes
884 x 413
[55453_DualPeripheralDriver.gif]
6515 bytes
297 x 401
 [6N134_DualOptoCoupler.gif]
4987 bytes
195 x 263
 [CD40106B_6SchmittTriggerInverter.gif]
7638 bytes
398 x 546
 [MHQ4014_QuadTransistor.gif]
25204 bytes
744 x 320
